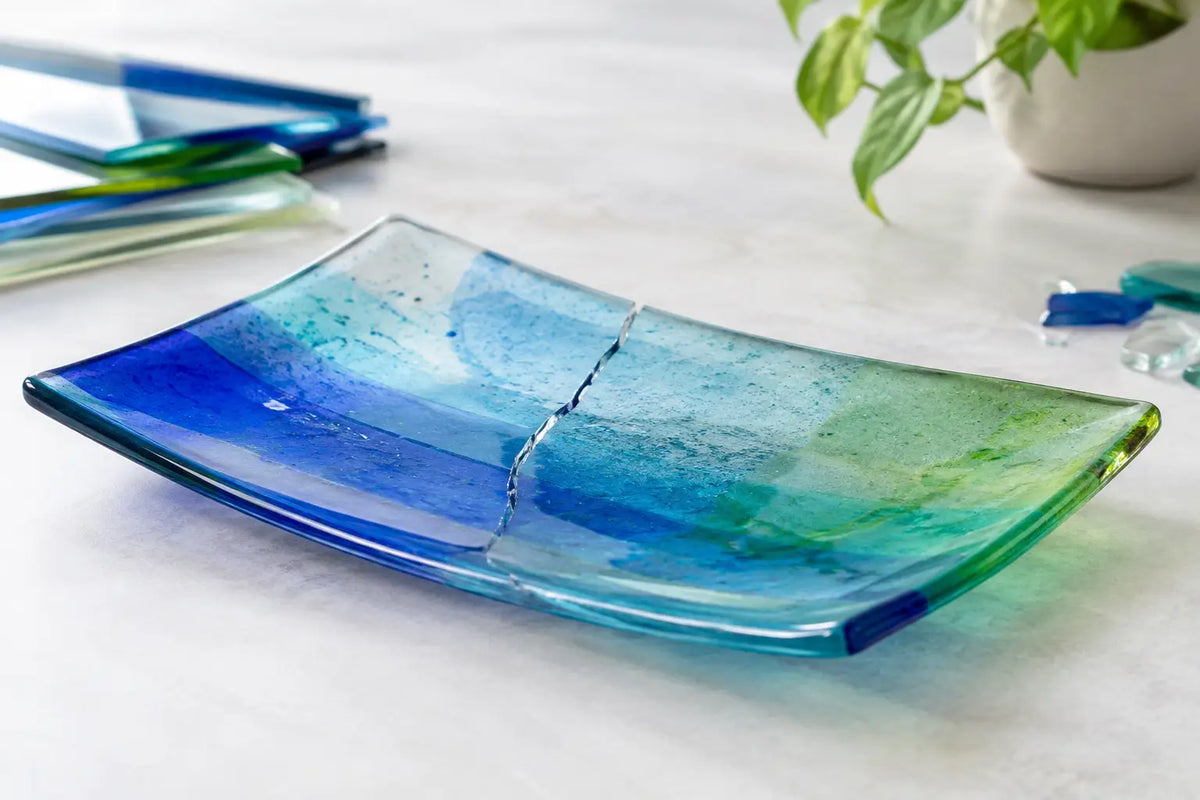

A crack across a freshly fired piece is disappointing, particularly when the colour, design and surface have otherwise come out beautifully. Fused glass cracks are rarely random, though. Their shape, timing and location usually point to a specific issue in the glass selection, assembly or firing schedule.
The most useful habit is to resist treating every break as the same problem. A crack that appears with a sharp ping as the kiln cools needs a different response from a piece that breaks while being loaded, or a large panel that develops a crack days after firing. Once you learn to read the evidence, you can make sensible adjustments rather than simply firing slower and hoping for the best.
First, identify when the crack occurred
If the piece comes out of the kiln in several pieces, look closely at the break. A clean, relatively straight break often suggests stress within the glass. A jagged break near an edge may be mechanical damage from handling, an unsupported projection, or a thin area that has become vulnerable during firing.
A crack that occurs during the heat-up stage is commonly thermal shock. Glass heats from the outside in. If the surface expands before the centre has caught up, the temperature difference can create enough stress to break the work. This is more likely with thicker assemblies, tightly packed kiln shelves, heavy inclusions and fast early ramps.
A crack that appears during cooling, or after the kiln has been opened, is more often an annealing or compatibility issue. The piece may look sound at first, then break with little pressure, sometimes hours or even days later. Do not assume the anneal was successful simply because the kiln reached the programmed annealing temperature.
The main reasons fused glass cracks
Incompatible glass in the same piece
Glass marked with the same coefficient of expansion, or COE, is designed to work together, but COE is not a complete guarantee of compatibility. It is a useful sorting system, not a promise that every glass from every manufacturer can be fused together safely.
For reliable kiln work, use glass from the same tested-compatible system. This includes base glass, frit, powder, stringers, rods and decorative components. A COE 90 product from one range should not automatically be combined with COE 90 from another range. Even when two products appear to fuse successfully, differing formulations may leave residual stress that later causes a crack.
This is particularly relevant when using found glass, stained glass offcuts, marbles, beads or unknown glass from the shed. These materials can be excellent for coldwork, mosaic or leadlight applications, but they are not dependable inclusions for fused work unless they have been tested. If you want to experiment, make a small test strip rather than risking a finished panel.
An anneal that is too short or too fast
Annealing is the controlled part of the cooling cycle that allows internal stress to relax. It is not just a pause at one temperature. The work needs enough time for the entire piece, including its centre, to reach an even temperature, followed by a slow enough descent through the strain range.
A standard schedule may be suitable for a simple 6 mm fused panel, but it may not suit a thick casting, a sculptural form, a piece with concentrated layers, or work containing dense glass elements. Thickness is not always obvious. Two layers spread evenly behave differently from a piece with a thick centre, stacked detail or a deep puddle caused by a full fuse.
As thickness and mass increase, extend the anneal soak and slow the cooling below it. The exact schedule depends on the glass system, the kiln, the actual thickness and the firing result you want. Manufacturer firing guidance is the best starting point, then keep records of the schedule that works in your own kiln.
Heating too quickly through a risky range
Large or thick pieces can crack on the way up as easily as they can during cooling. A rapid ramp may be fine for a small single-layer pendant but risky for a broad platter blank, a layered landscape or a kiln shelf carrying several heavy pieces.
Slow the initial heat-up when the glass is thick, cold, unusually large or has uneven construction. This matters in winter workshops, where glass may be significantly cooler than the kiln room, and when firing opaque glass combinations that absorb heat differently. A short equalisation hold can help the whole load settle to a more even temperature before the next ramp.
Uneven construction and trapped stress points
A piece does not need to be technically thick overall to have a problematic thick section. A stack of circles in one corner, a heavy glass cabochon, overlapping stringers, or an inclusion buried beneath layers can create local mass. That section cools differently from the surrounding sheet glass.
Sharp internal angles can also concentrate stress. Where possible, avoid narrow necks between larger sections and abrupt changes in thickness. Round transitions and balanced layouts generally fire more predictably. If the design needs pronounced relief, build your schedule around the thickest section rather than the average thickness.
Mechanical stress after firing
Not every cracked piece has failed in the kiln. Glass can be damaged when it is moved from a shelf while still warm, placed on an uneven bench, gripped too tightly during coldworking, or fitted into a frame that does not allow for a little tolerance.
Check the edges as well. Small chips and deep grinder marks can become starting points for a larger crack, particularly in functional work. Smooth sharp edges and remove significant chips before firing where practical. For slumped work, make sure the mould is level, properly prepared and suited to the size of the blank.
How to diagnose the crack before changing your schedule
Start with the simplest questions. Was every component from a tested-compatible glass family? Was the piece thicker in one area than expected? Did the crack occur before firing, during heat-up, after cooling or while handling?
Next, examine the break pattern. A crack that runs from an inclusion or from a thick decorative cluster is a strong clue. A crack that starts at an edge may indicate a chip, a point of contact with the kiln shelf, or thermal shock. Several cracks radiating through a thick piece often point to annealing stress.
If compatibility is in doubt, use a polarised-light stress test if you have access to the appropriate equipment. This can reveal stress before a piece breaks. It is especially worthwhile for production work, pieces intended for sale, or experiments combining unusual materials. Keep a notebook with glass brands, product codes, layer count, peak temperature, soak times and observations. Good kiln records save more glass than guesswork does.
A practical firing approach for fewer cracks
Use the schedule published for your tested-compatible glass as the baseline, then adapt it carefully. Change one variable at a time. If you slow both the heat-up and the cooling, alter the anneal soak and change the glass combination, you will not know which adjustment solved the problem.
For ordinary two-layer work, consistent construction and a proven schedule are usually enough. For thicker work, consider the thickest point rather than the nominal layer count. Allow more time for heat to equalise before the anneal, extend the anneal soak, and cool more gradually through the range where stress develops.
Avoid opening the kiln early. The controller may show a reassuring temperature, but the glass and kiln furniture can still be uneven. Let the kiln cool naturally to a conservative handling temperature. Opening early to check the result is one of the quickest ways to turn a good firing into a preventable crack.
Can cracked fused glass be repaired?
Sometimes, but it depends on the crack and the purpose of the piece. A clean break in compatible glass can occasionally be re-fused, provided the edges fit closely and the design can tolerate the visual change. A full fuse may soften the join, while a tack fuse may leave the line visible. Neither option is guaranteed to restore a functional piece to its original strength.
Do not re-fire a piece simply because it cracked. First identify why it failed. Re-fusing incompatible glass or poorly annealed work may produce another break, or trap stress in a piece that appears fine until later. For decorative fragments, consider repurposing them into mosaic, jewellery components or a new layered design.
Build confidence one firing at a time
Cracking is part of learning kiln-formed glass, but repeated breakage does not need to remain a mystery. Begin with compatible materials, construct with even thickness in mind, and give heavier work the slower firing cycle it needs. If you are unsure about a glass combination or schedule, ask before committing a favourite sheet of glass. A small test firing and a careful record can turn the next kiln opening into the satisfying one you were aiming for.
