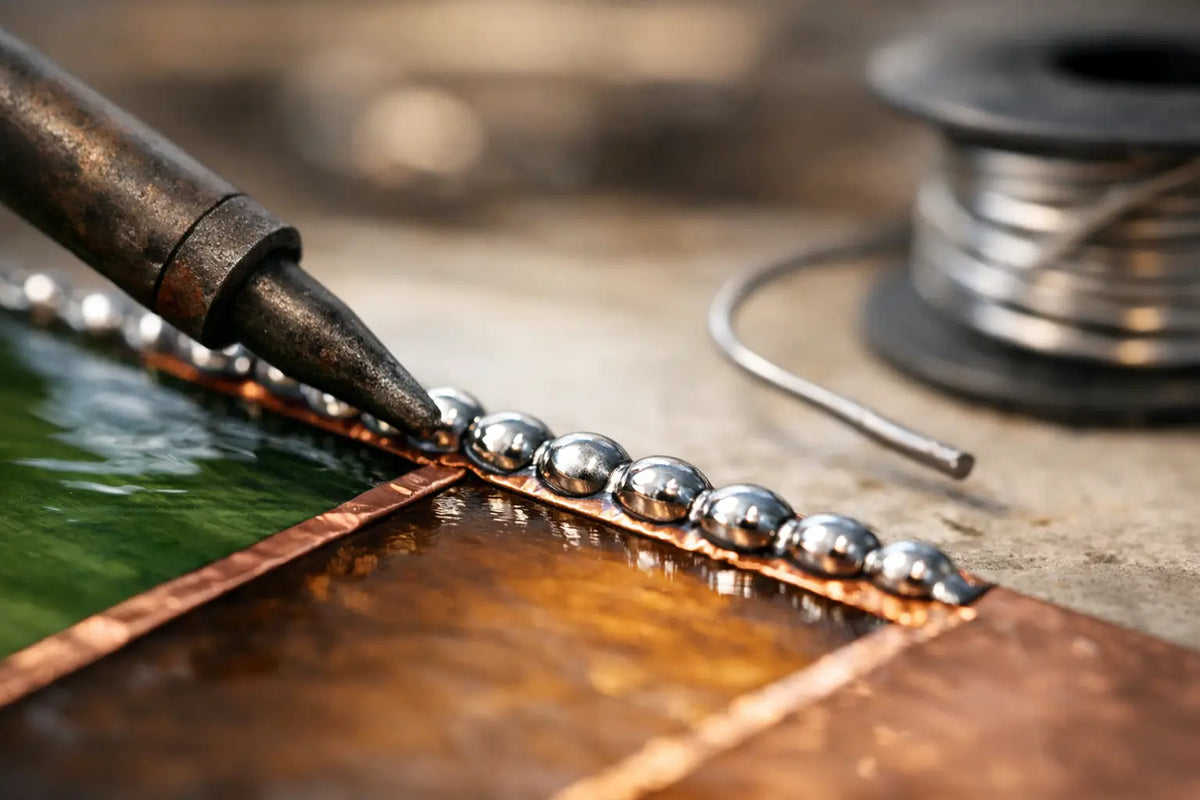

A solder seam that suddenly pulls into shiny little balls is frustrating, particularly when the foil was neatly applied and the glass is ready for its final finish. If you are asking why does solder bead, the short answer is that solder is not finding a clean, properly fluxed and suitably heated surface to bond with. The longer answer matters, because the same symptom can come from several different workshop issues.
In copper foil work, solder should flow onto the copper and form a controlled bead along the seam. In leadlighting, it should wet the cleaned lead came and settle into a sound joint. When it refuses to do either, resist the urge to add more solder straight away. More solder on an unprepared seam usually creates a larger mess, not a better joint.
Why does solder bead instead of flowing?
Molten solder has surface tension. Left to itself, it naturally wants to gather into a rounded droplet. Flux, clean metal and correct heat work together to overcome that tendency, allowing the solder to wet the copper foil or lead came.
When one of those conditions is missing, the solder retreats, skips across the seam or forms separate balls. A beaded result is therefore usually a preparation or heat-transfer problem, rather than a problem with your soldering technique alone.
Oxidised or contaminated copper foil
Copper foil can oxidise, especially in humid conditions or when it has been stored for a long period. Fingerprints, cutting oil, marker residue, adhesive seepage and polishing compounds can also sit on the foil. Solder will not reliably adhere through that contamination.
This is common on foiled pieces that have been assembled over several days. The foil may have looked bright when it was applied, but a fine oxide layer can develop before soldering begins. It is also worth checking whether the foil has been burnished firmly onto the glass. Loose foil edges trap flux and make it difficult to establish an even solder line.
Clean the seam before applying fresh flux. A gentle scrub with a suitable abrasive pad can remove surface oxidation from copper, provided you do not damage delicate glass or lift the foil. Wipe away residue, allow the work to dry, then apply fresh flux. Avoid handling cleaned seams with bare fingers.
Lead came that has not been cleaned
Lead came develops oxidation quickly. Even new came can arrive with a dull surface that needs preparation, while older stock may have a more substantial oxide layer. Flux alone is not a substitute for cleaning.
Use an appropriate abrasive pad, steel wool or another method suited to your usual leadlighting practice to brighten the area around the joint. Brush away dust and apply flux only where it is needed. The solder should then flow into the intersection rather than sitting on top like a separate blob.
Be cautious with aggressive cleaning methods around antique glass, painted glass or fragile surfaces. The objective is clean lead at the joint, not a highly polished panel.
Exhausted, dirty or unsuitable flux
Flux removes light oxidation as the joint heats and helps solder wet the metal. It is doing real chemical work, which is why old, overheated or contaminated flux can cause trouble.
If flux has been sitting open in the workshop, has collected solder particles, or has been repeatedly cooked by an iron, replace it. Apply a light, fresh coat with a small brush. Flooding a seam with flux does not improve solder flow. Excess flux can spit, leave residue and make it harder to see whether the solder is genuinely bonding to the copper or lead.
Choose a flux appropriate for stained glass soldering and follow its handling and cleaning directions. Different fluxes behave differently, particularly between liquid and gel formulas. A flux that suits broad lead came joints may feel quite different on fine copper foil detail.
The iron is too cool
A cool iron is one of the most common reasons solder beads. Instead of melting and flowing smoothly, the solder lands on a surface that is not hot enough and rolls into a lump. You may find yourself holding the iron in one place for too long, which transfers heat into the glass but still does not create a neat seam.
Allow the iron to recover fully between joints. Check that the tip is tinned, clean and making proper contact with the work. A heavily oxidised tip does not transfer heat efficiently, even if the temperature setting appears correct.
For copper foil work, heat the foil and feed solder into the heated seam rather than trying to melt a large amount of solder directly on the iron and deposit it afterwards. The solder should follow the iron in a controlled line. If it stays rounded and reluctant, pause and reassess the seam rather than continuing to build solder on top.
The iron is too hot
Too much heat can create a different version of the same problem. Flux burns away very quickly, copper foil may darken, and solder can race across the joint before pulling back into uneven lumps. Overheating also risks thermal stress in the glass, particularly in narrow pieces, corners and work with uneven glass thickness.
The ideal temperature depends on the solder alloy, iron wattage, tip size, room conditions and the mass of the work. There is no single setting that suits every panel. A small decorative sun catcher and a large, heavily foiled lamp panel do not need the same heat delivery.
If flux is smoking heavily or turning brown immediately, reduce the heat or move the iron more efficiently. A broad, well-tinned tip at a moderate working temperature often delivers heat more effectively than a tiny tip turned excessively hot.
Check the solder itself
Not every solder alloy is equally forgiving. Traditional 60/40 tin-lead solder has a pasty range as it cools, which can be useful when shaping a rounded bead on copper foil. A 50/50 alloy generally produces a flatter seam and is often used for structural joins and lead came work. Lead-free solder may require different temperatures and can have a noticeably different flow and finish.
Using the wrong alloy is not always the direct cause of beading, but it can make a borderline setup harder to control. Match the solder to the construction method and the finish you want. If you change alloy, expect to adjust your iron temperature, pace and amount of flux.
Also inspect the solder for dirt or residue. Keep it stored cleanly and avoid dragging solder through old flux, bench dust or abrasive debris before bringing it to the joint.
A practical way to fix a beaded seam
When solder has balled up, stop before the seam becomes bulky. Let the area cool enough to handle safely, then assess whether the solder is actually attached to the foil or lead. A shiny blob can look acceptable at first glance while remaining poorly bonded underneath.
For a copper foil seam, reapply a small amount of fresh flux to the affected section. With a clean, tinned iron at the correct working temperature, touch the seam briefly and guide the solder along the line. If there is too much solder, draw some away with the iron rather than adding more. Work in short sections, especially around points, narrow strips and glass prone to heat stress.
For lead came, clean and flux the joint again if needed, then heat the intersection until the solder flows into it. The goal is a solid bond at the joint, not a high decorative bead. If solder continues to sit on the surface, the lead is still oxidised, the flux is ineffective, or the iron is not transferring enough heat.
Do not try to correct every uneven area while the panel is hot. Repeated heating of the same spot can loosen foil adhesive, crack glass or distort a carefully built seam. Let the work cool, then return with a clear plan.
Prevent solder beading before it starts
Good results begin before the iron is switched on. Burnish copper foil firmly, paying close attention to edges and overlaps. Keep foil, came and solder clean, and remove marker or adhesive residue from joints. Use fresh flux sparingly and keep the lid on when it is not in use.
Maintain the soldering iron as part of normal workshop practice. Wipe the tip on a suitable cleaner, re-tin it regularly and replace worn tips before they become badly pitted. A tip that is dark, crusted or misshapen cannot deliver heat consistently.
It also helps to practise on a few offcuts whenever you change foil width, solder alloy or flux. Watch the way solder responds: it should melt promptly, grip the metal and move with the iron. That brief test can save a carefully assembled piece from a long session of repairs.
A clean seam, fresh flux and a well-tinned iron solve most beading problems. If the solder still refuses to flow, slow down and isolate one variable at a time. That patient approach is part of sound stained glass practice, and it is far kinder to both your glass and your finished work.
