A roll of copper foil for stained glass should be adhesive-backed. That adhesive is what holds the foil neatly around the edge of each glass piece while you burnish, flux and solder the panel. However, the adhesive is not the structural bond in a finished project, so the quality of the foil, the accuracy of the wrap and your soldering technique still matter greatly.
For copper foiling, the right tape saves a great deal of frustration. Foil that grips the glass consistently lets you position pieces accurately, keep seams tidy and build solder lines with confidence. Foil with poor adhesion, damaged edges or an unsuitable width can make even well-cut glass difficult to assemble.
Is copper foil adhesive-backed for stained glass work?

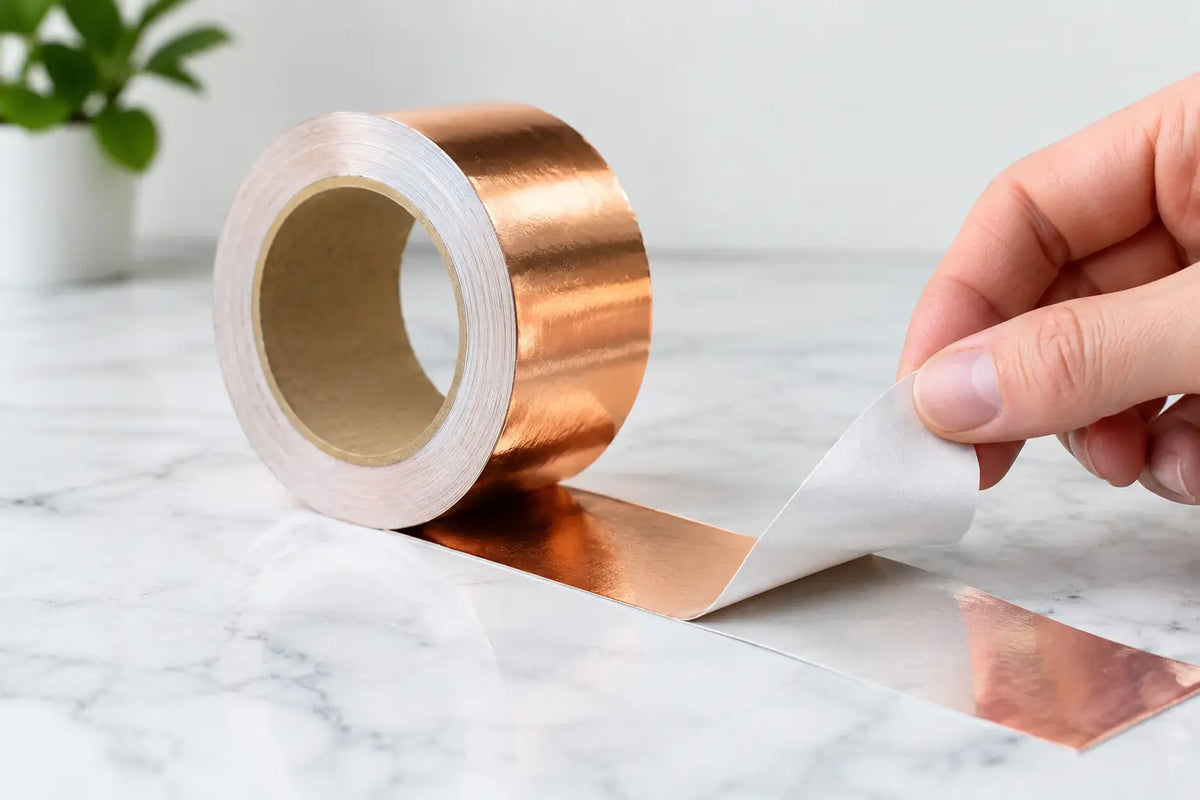

Yes. Copper foil tape sold specifically for stained glass and Tiffany-style work has a pressure-sensitive adhesive on one side. The copper side remains exposed so it can be fluxed and soldered. The adhesive side sits against the edge and slightly onto the faces of the glass.
You do not need to add glue before applying standard stained glass foil. Simply centre the tape over the glass edge, press it into place, fold the overhanging foil onto both faces, then burnish it firmly. The adhesive is activated by pressure rather than heat, which makes careful burnishing an essential part of the process.
This is different from a plain copper sheet, flashing, or certain technical copper tapes used for electrical shielding. Those materials may have no adhesive, a conductive adhesive, or an adhesive not suited to glass work. When ordering, look for copper foil tape described for stained glass, leadlighting or copper foil construction.
What the adhesive does - and what it does not do
The adhesive has one important job: it keeps the foil in position until solder joins the pieces together. It is not intended to carry the weight of the panel or compensate for a loose, poorly fitted pattern.
After soldering, the copper foil and solder form the metal framework of the piece. A well-made small suncatcher may feel very solid, but larger panels, lampshades and three-dimensional work need sound design, appropriate reinforcement and careful handling. Adhesive-backed foil makes assembly possible; it does not replace construction planning.
Good adhesive should hold reliably during normal handling, foiling and soldering. It should not lift at corners, slide off the glass edge, or leave you trying to re-press every piece before adding flux. That said, adhesive can be affected by dusty glass, oily fingerprints, grinding residue, very cold workshop conditions and excessive handling.
Choosing the right copper foil tape
Copper foil is available in different widths, thicknesses and backing colours. The best choice depends on the thickness of your glass, the scale of the design and the finish you want to see through transparent or opalescent glass.
Foil width
The width of the foil needs to cover the glass edge and leave a balanced amount on each face. For much standard stained glass, a foil around 7/32 inch is a common starting point. Thicker glass, bevels or pieces where you want a wider solder line may need wider foil. Fine detail work often benefits from narrower foil, provided there is enough copper on the glass face to form a dependable solder bead.
Centred foil produces a more even solder line. If the foil sits noticeably to one side, the solder will usually exaggerate the imbalance. This is especially obvious on light-coloured cathedral glass, clear bevels and designs with straight borders.
Foil thickness
Thicker foil is generally more forgiving during handling and may be useful where a firmer edge is wanted. Thinner foil can suit delicate work and small pieces, but it is easier to tear or distort if overworked. Neither option will correct poorly cut glass. Aim for pieces that fit accurately before foiling, with a sensible allowance for the solder seam.
Backing colour
Copper foil can be supplied with copper, black or silver backing. The backing colour is visible through clear or translucent glass where the foil wraps onto the face, so it affects the appearance of the finished work.
Copper-backed foil is a natural choice where the warm copper tone will suit the glass or where the foil is not very visible. Black-backed foil is often preferred behind dark glass or where a darker finished line is desired. Silver-backed foil can be useful behind pale, clear or lightly coloured glass, helping reduce the appearance of a dark edge before finishing.
The backing colour does not replace a patina. It is simply the colour you see beneath the glass before the exposed copper and solder are finished.
Preparing glass for reliable adhesion
Foil adheres best to clean, dry glass. After cutting and grinding, wash away all grinding slurry and dry each piece thoroughly. Pay particular attention to textured glass, deep ripples and corners where fine glass dust can remain.
Avoid touching the edges excessively once they are clean. Natural skin oils are enough to reduce grip on some surfaces. If a piece has been sitting on the bench for a while, a quick clean and dry before foiling is worthwhile.
Very rough or sharply chipped edges can also make foil difficult to apply. A light pass on the grinder to smooth troublesome areas makes the foil sit more evenly and reduces the risk of tears when folding it down. You are not trying to round every edge heavily, just create a clean surface for the tape to follow.
How to apply adhesive-backed copper foil neatly
Start with the glass piece facing the same way each time, particularly if it has a textured front or a deliberate grain direction. Pull out a short length of foil and position the glass edge in the centre of the tape. Press the foil along the edge as you go rather than trying to apply it all at once.
At the starting point, allow a small overlap rather than leaving a gap. Keep that overlap tidy and avoid placing it directly on a sharp outside corner if possible. Once the edge is wrapped, fold the foil onto the front and back faces with your fingers, then burnish it thoroughly using a fid, burnishing tool or a similarly smooth tool made for the job.
Burnishing is more than a final tidy-up. It seats the adhesive against the glass and removes small air pockets that can allow foil to lift. Work carefully around inside curves, points and narrow pieces, where foil has the greatest tendency to wrinkle.
If wrinkles appear on a tight curve, make small relief cuts in the overhanging foil before folding it onto the glass face. Do not cut so deeply that you create a gap over the edge. A neat relief cut is easier to solder than a bulky fold of crumpled copper.
Common problems with adhesive-backed foil
Foil lifting during assembly is usually caused by contamination, insufficient burnishing or old stock that has been stored poorly. Check that the glass is genuinely dry and free from grinding residue before assuming the foil itself is at fault.
Foil that splits or tears may be too thin for the way it is being handled, or it may be catching on sharp glass edges. A wider tape is not automatically the answer. Choose a width that suits the glass and design, then improve edge preparation and handling first.
Another frequent issue is foil that appears secure until flux is applied. Use flux sparingly and avoid flooding the work. Excess liquid can creep under imperfectly burnished foil, particularly around overlaps and sharp points. Solder in a controlled manner, keeping the iron moving and cleaning up residue when the work is complete.
For a panel that will be handled regularly or hung in a demanding location, do not rely on foil alone to solve structural concerns. Consider reinforcing strips, wire, zinc border, strong solder joints or a design revision where needed. Traditional lead came construction may be the better method for some large or architectural pieces.
A practical check before you begin
Before foiling an entire project, test a short length on an offcut of the same glass. It should sit flat, fold without splitting and remain in place after firm burnishing. This simple check is particularly useful when moving between smooth cathedral glass, heavily textured sheet, bevels and handmade glass with variable thickness.
Adhesive-backed copper foil is a straightforward material, but it rewards careful preparation. Start with clean glass, select foil that suits the job, centre it patiently and burnish every piece well. Those few deliberate steps give your soldering the clean foundation it needs and let the glass, rather than untidy seams, remain the focus of the finished work.
