A leadlight panel can be perfectly cut and fitted, yet still look untidy or fail early if the soldering is rushed. Learning how to solder lead came is less about piling on solder and more about clean preparation, controlled heat and knowing when to stop. The aim is a neat, slightly raised joint that locks the lead framework together without melting, distorting or flooding the came.
Lead came soldering is a traditional process, but it rewards a methodical approach. Once you understand the relationship between your iron, flux, solder and came, the work becomes much more predictable.
What you need before soldering lead came
Set the panel on a flat, firm board and ensure it is fully secured with horseshoe nails or suitable stops. Every piece of glass and every length of came should already be correctly fitted. Solder is not a substitute for a loose-fitting joint or an unsupported panel.
For most leadlighting work, use a substantial soldering iron, generally 80 to 100 watts, or a temperature-controlled iron with enough thermal mass to heat the joint quickly. A small hobby iron often struggles with lead came, causing you to hold heat on the work for too long. That can soften the lead, disturb the glass or create a dull, uneven solder bead.
You will also need solid-core solder, flux, a flux brush, steel wool or a fine abrasive pad, clean rags and appropriate personal protective equipment. Traditional leadlight solder is commonly a 60/40 tin-lead blend. It flows well and creates a durable joint, though the exact solder choice may depend on your preferred finish and the construction method.
Use flux intended for stained glass and leadlighting. A liquid flux is easy to brush into joints, while gel flux can stay where it is placed more readily. Both can work well, provided residues are cleaned off thoroughly after soldering.
Because you are working with lead and flux fumes, set up in a ventilated area. Keep food and drinks away from the bench, wash your hands after handling lead came or solder, and clean dust from the work area rather than allowing it to build up.
Prepare the joints properly
Good soldering begins before the iron is switched on. Lead came develops a surface oxidation that solder will not readily bond to, especially if it has been stored for some time. Clean each joint with fine steel wool or a suitable abrasive pad until the surface is bright.
Brush a small amount of flux directly onto the joint. You only need enough to cover the area where solder will flow. Excess flux can spread across the glass, leave more residue to clean and encourage solder to travel farther than intended.
Check that the came joints are tight. Where two pieces of came meet, their ends should sit neatly together rather than leaving a wide gap. A tiny gap can be bridged by solder, but a large opening will produce a heavy blob rather than a strong, tidy joint. If the fit is poor, correct the came before proceeding.
Tin the iron tip
A clean, tinned iron tip transfers heat efficiently. Heat the iron, wipe the tip on a damp natural sponge or brass wool, then apply a small amount of solder so the working face is bright and coated.
If solder beads up on the tip or the iron leaves black residue behind, clean and re-tin it. Do not file modern plated tips, as this removes the protective coating. A neglected tip makes soldering unnecessarily difficult and often leads to overheating the came.
How to solder lead came step by step

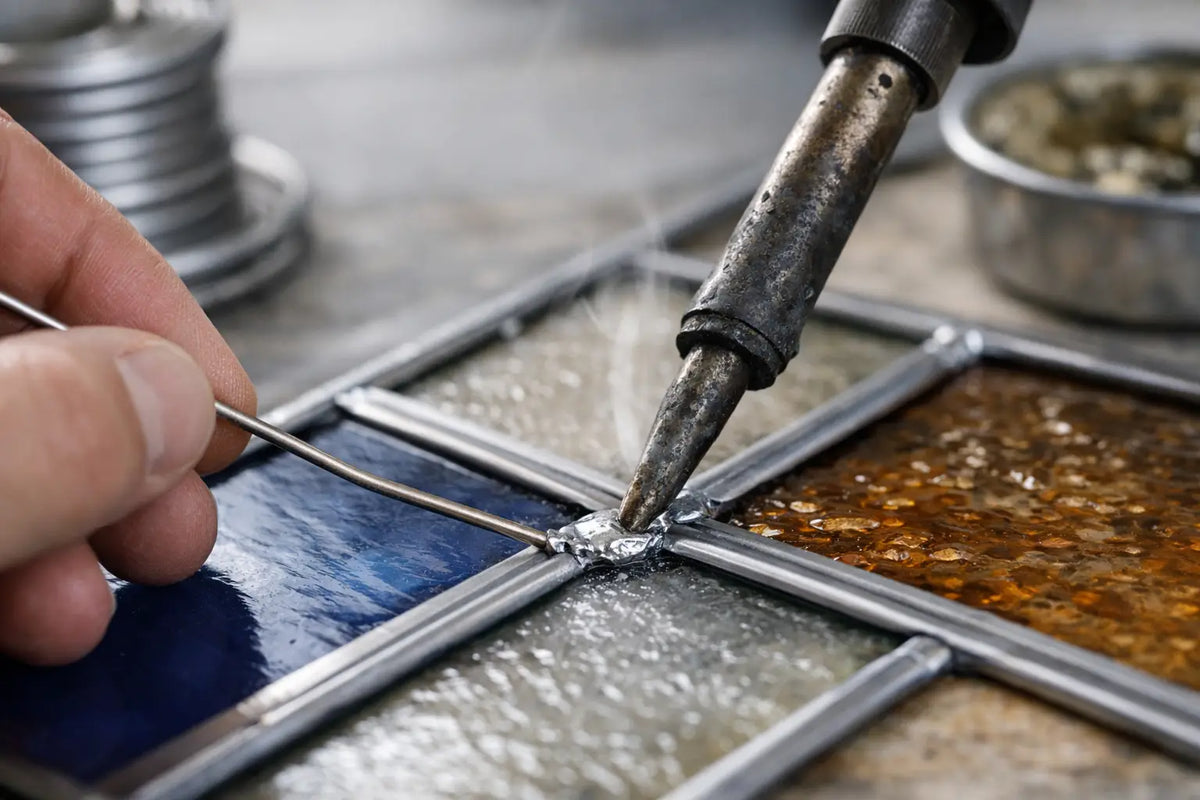

Start with a corner or an internal intersection where several came pieces meet. Place the iron tip briefly on the fluxed joint to warm the lead. Then feed solder to the joint, rather than melting a large amount on the iron and carrying it across the panel.
As the solder begins to flow, move the iron in a small circular motion. This helps heat both sides of the join and encourages the solder to settle into a smooth, rounded bead. Lift the iron away as soon as the solder has flowed evenly. Continuing to heat the joint after that point will not make it stronger.
A good face-side joint is usually modestly domed, with a clean edge that follows the came. It should not be flat and starved of solder, but it should not resemble a large mound either. The solder needs to tie the came sections together while preserving the definition of the lead lines.
Work methodically across the panel, soldering alternate joints where practical rather than concentrating heat in one small area. On a larger panel, moving around the work reduces the chance of softening nearby lead came. This is particularly useful around tight clusters of narrow pieces or detailed borders.
Once the face is complete and cool, carefully turn the panel over on a clean, padded surface. Inspect each joint before soldering the reverse side. The back joints do not need to be identical to the front, but they must be fully bonded. Soldering both sides is what gives a leadlight panel its structural integrity before cementing.
Use heat, not pressure
Let the iron do the work. Pressing hard with the tip can dent soft lead came, shift a joint or chip the edge of glass if the panel is not properly supported. A sufficiently powerful iron, used briefly, is safer than a low-powered iron held in place for too long.
If solder will not flow, do not immediately turn up the heat. First check whether the joint is clean, fluxed and properly fitted. Oxidised came, spent flux or a dirty iron tip is more often the cause than insufficient temperature.
Common soldering problems and what causes them
Dull, grainy solder usually means the joint moved while cooling, the surface was not clean enough, or the heat was too low for the solder to flow properly. Let the joint cool, clean it, apply fresh flux and reflow it briefly.
A solder blob that spills over the came can result from too much solder, too much flux or an overly hot iron. While the solder is still molten, you can often draw away a little excess with the clean iron tip. If it has set, reheat the joint gently and reshape it rather than scraping at the glass.
If the lead came starts to slump, buckle or show a deep indentation, stop and allow the area to cool. This is a sign that heat has been applied for too long. Check your iron size, tip condition and technique before continuing.
Solder refusing to stick to one section of came is nearly always a preparation issue. Clean back to bright metal, flux again and make sure the iron tip is tinned. New came can still have oxidation or handling residue, so do not assume it is ready to solder straight from the bundle.
Finish, clean and inspect the panel
After both sides are soldered, inspect the panel in good light. Look for missed intersections, incomplete joins and sharp solder points that may catch during handling. A properly soldered joint should be continuous around the came meeting point, not merely attached on one edge.
Clean all flux residue before moving on to cementing, as leftover flux can stain the lead and affect the finished appearance. Use a suitable cleaning method for your flux and dry the panel thoroughly. Take care not to flex an uncured panel, particularly if it is large or has long uninterrupted lead lines.
For beginners, it is worth practising on offcuts of lead came first. Make a few T-joints and cross joints, then compare the beads. You will quickly see how a clean surface, fresh flux and a well-tinned iron affect the result.
Strong leadlight soldering is built through repetition rather than speed. Give each joint a proper fit, use enough heat to make the solder flow cleanly, and let the panel tell you when it needs a pause. Those small habits protect both the craftsmanship and the life of the finished work.
