Textured sheet glass can make a leadlight panel feel alive, but it also asks more of your cutting technique than a smooth cathedral glass. Learning how to cut textured glass starts with reading the surface rather than forcing the break. The goal is not to press harder. It is to create one clean score, support the glass well and let the fracture follow its natural path.
A successful cut is especially important when working with expensive art glass, strongly patterned textures or a carefully planned feature piece. A little patience at the cutting bench will save material, grinding time and frustration later.
Why textured glass cuts differently
Texture changes how the cutting wheel contacts the glass. On a smooth sheet, the cutter travels evenly and creates a consistent score line. On a rippled, hammered, seedy or heavily patterned surface, the wheel can bounce across high points and lose contact in the low areas. That interrupted score is where a break can wander.
The glass may also have visual movement that makes it harder to see the score line, particularly in dark colours, opalescent glass or a busy baroque pattern. Texture does not make glass impossible to cut, but it does mean the smoothest available face is usually the best face to score.
For stained glass and leadlighting work, keep in mind that a clean break matters beyond appearance. A jagged edge can alter the fit of lead came, create excessive gaps in copper foil work, or require enough grinding that your piece ends up undersized.
Set up before you score
Use a clean, flat cutting surface with enough support beneath the whole sheet. A dedicated self-healing cutting mat or a firm piece of low-pile carpet works well. Avoid a hard bare bench, where uneven pressure and grit beneath the glass can contribute to unwanted breaks.
Check both sides of the sheet under good light. Choose the smoother side for scoring wherever possible. Some glasses are textured on both faces, and some have a pronounced texture on one side with a comparatively flatter reverse. If there is no truly smooth face, select the side with the broadest, most continuous contact path for the cutter wheel.
Wipe away dust, glass chips and cutting oil residue before starting. A tiny chip under the sheet can become a pressure point. Mark your cut line with a fine permanent marker that you can see against the glass, then position a straightedge securely if the cut is straight.
A quality pistol-grip or pencil-grip glass cutter with a sharp carbide wheel is worth using. Fill an oil-fed cutter with suitable cutting oil if it is designed for it. The oil lubricates the wheel and helps it roll cleanly, but flooding the surface will not improve a poor score. For very textured glass, a dry cutter may give you better control if oil makes the line difficult to see.

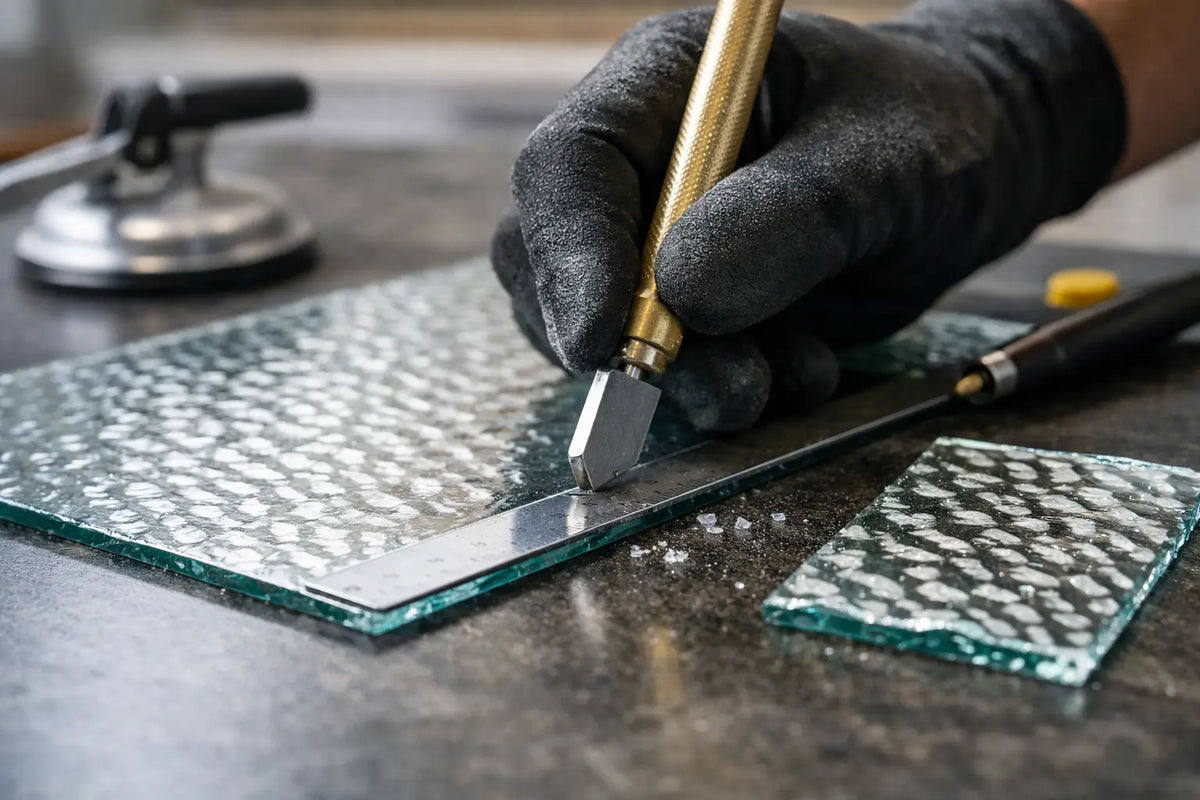

How to cut textured glass with a clean score
Hold the cutter upright or at the angle recommended for its design. Place the wheel just inside the edge of the glass, then pull it towards you in one controlled motion. A steady pull is generally easier to manage than pushing away, particularly when following a line through uneven texture.
Use firm, even pressure - enough to hear a quiet, consistent scratching sound, but not enough to crush the surface. A score that is too light may not run. A score that is too heavy can create flares and tiny fractures that travel off line. On textured glass, the temptation is to bear down as the wheel crosses a raised pattern. Resist it. Keep the pressure as consistent as you can and let the cutter roll over the texture.
Score the line once only. Going back over a score almost always weakens the result. The second pass rarely lands in exactly the same track and may create a broad, damaged line rather than a controlled fracture.
At the end of the line, ease off the pressure as the cutter reaches the far edge. A hard stop can chip the corner. If the sheet has an especially irregular perimeter, start and finish a few millimetres in from the edge where practical, then use grozing pliers to remove the small waste section.
Running the score
For a long straight cut, align the score with the edge of your bench and apply gentle, even downward pressure to the waste side. Do not bend the sheet sharply. You are encouraging the score to open, not snapping the glass in half.
Running pliers are often the most controlled option, particularly on medium to heavy textured glass. Set the centre mark on the pliers directly over the score line, with the curved jaw beneath the glass. Squeeze gradually until the break begins to travel. You may see the line open from one end to the other, or hear a soft crack as it runs.
If the score does not open immediately, turn the glass over and gently tap along the underside of the score with the ball end of your cutter. Use light taps only. Strong tapping can produce a chipped, uneven edge or send a crack into the useful piece.
For narrow strips, support the main piece and use breaker-grozer pliers to remove the waste. Take several small bites rather than twisting off a long, stubborn strip. This is slower, but it gives you more control around a strong texture.
Curves, shapes and tight areas
Textured glass will cut into gentle curves, but it does not respond kindly to sharp internal corners. Draw the pattern line clearly and score smooth, flowing curves in one pass. Avoid stopping partway through a curve, as a pause can leave a weak point in the score.
For an inside curve, make relief cuts from the waste edge towards the curve before attempting to remove the larger waste area. These cuts should stop short of the final pattern line. Break away each section gradually, then refine the edge on a glass grinder.
Tight inside corners should usually be cut as an approximate shape and ground to the final line. Trying to force a score into a sharp point is a common cause of cracks running into the piece. This approach is also sensible for leadlighting patterns, where a small amount of grinding often produces a more accurate fit than chasing a perfect cutter-only shape.
When the texture is particularly deep, allow a little extra margin around complex shapes. Cut oversize, then grind carefully. This is not wasted effort - it is a practical way to protect an irreplaceable piece of patterned glass.
Common problems and what they mean
A break that wanders away from the score is usually caused by inconsistent scoring pressure, scoring on the rougher face, or trying to run the glass before the score has started properly at the edge. It can also happen when the sheet is under internal stress. Some hand-rolled art glass simply has more personality than predictability.
If the edge is badly chipped, check that your cutter wheel is clean and rotating freely. Also check your bench for grit, and make sure you are not applying excessive pressure when breaking the score. A little edge chipping is normal and can be cleaned up on the grinder; a deeply ragged edge suggests the score or break method needs adjustment.
If the glass refuses to break, do not score it again. Try gentle underside tapping, then use running pliers with the correct orientation. For a narrow waste strip, carefully groze it away. Re-scoring is more likely to create an uncontrolled fracture than solve the problem.
Choose the method for the glass and the job
Fine cathedral textures and lightly rippled transparent glass often cut much like smooth glass once scored from the flatter side. Deeply hammered, granite, glue-chip and strongly rolled textures may need slower handling, more support and more finishing at the grinder.
Opalescent glass deserves extra care because it can conceal the score line and may have uneven density through the sheet. Hold it up to a light source after scoring so you can confirm the line before running it. For projects where the texture direction matters, such as a water effect, feather motif or architectural panel, plan your cuts before you start so the pattern remains intentional across adjoining pieces.
If the glass is being used in kiln work, cutting is only one consideration. Confirm that all components in the piece are compatible for the intended firing, and consider how a strong surface texture will behave when layered or fired. A clean cut edge helps, but it does not replace good kiln-forming preparation.
Safety and finishing
Wear safety glasses whenever you score, break, groze or grind glass. Keep hands clear of the score line while running a break, and sweep offcuts into a dedicated glass bin rather than the general rubbish. Small shards are remarkably good at finding their way into shoes and studio floors.
After cutting, run the edge lightly over the grinder to remove sharp teeth and bring the piece to the exact pattern line. In copper foil work, this gives the foil a sound surface to adhere to. In leadlighting, it helps the glass sit cleanly in the came channel without forcing the joints.
Textured glass rewards a measured hand. Score once on the smoothest face available, give the sheet full support and use the grinder as a finishing tool rather than a rescue tool. With practice, even a deeply patterned sheet becomes less of a gamble and more of a material you can use with confidence.
